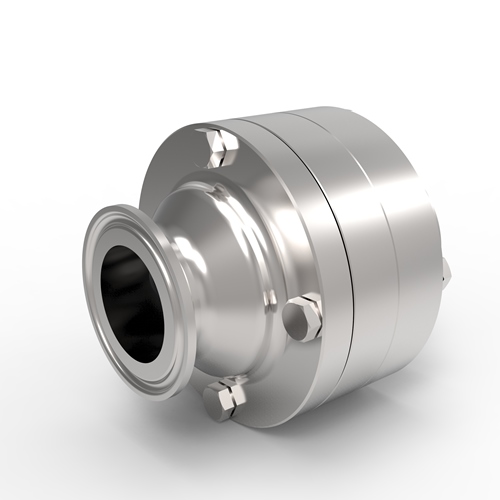

AGGROBALL CHECK VALVE
AGGROBALL CHECK VALVE
The latest Ygros innovation designed specifically for the chemical sector and the most aggressive applications.
Strictly without spring (like all Ygros products), the AGGROBALL non-return valve has a very high resistance to acids and corrosive agents.
This check valve is maintenance free. Guaranteed closing in all mounting positions (even vertically with downward flow).

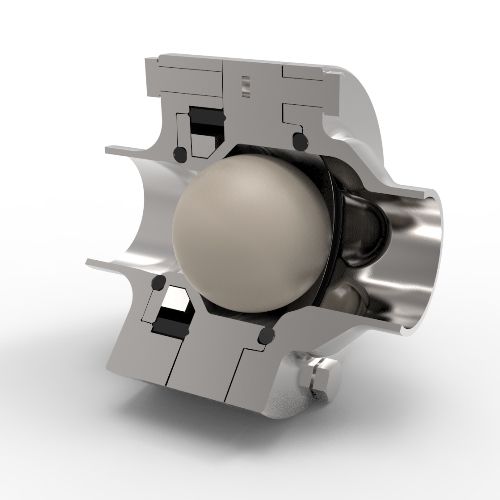

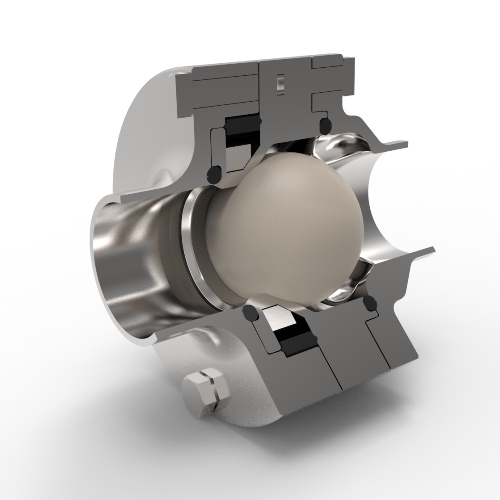

The technology patented by YGROS sets new standards in the world of plant engineering, thanks to a magnetic principle that replaces the function of the spring. For fluids and gases. Finally a truly resistant solution, suitable for the treatment of the most aggressive fluids.
- No more springs that can break or jam.
- No intermediate components to prevent flow
- No stagnation points.
- No maintenance required.
BENEFITS
- Very high chemical resistance and durability of the valve: thanks to the use of highly leathery materials such as 1.4435 (body and flange) and PVDF (shutter)
- Closing guarantee: Secured by the patented magnetic principle
- Free positioning: unlike other ball valves, Ygros AGGROBALL maintains its functionality both on horizontal and vertical installations.
- Energy saving: Operating principle and innovative design allow a fluid and free passage, thus minimizing turbulence and pressure drops.
- Laminar flow: Minimizes turbulence
- It does not require maintenance
TECHNICAL DATA
|
Materials in contact with the product |
Body and flange: Stainless steel 1.4435 (AISI 316LM), max <1% ferrite |
|
Materials not in contact with the product |
Magnet: Neodymium |
|
Gaskets |
EPDM, NBR, HNBR, VMQ (Silicone), FKM (Viton), FEP, PTFE |
|
Surface finishes |
Internal: Ra µm ≤ 0.8 (standard) |
|
Flanges available |

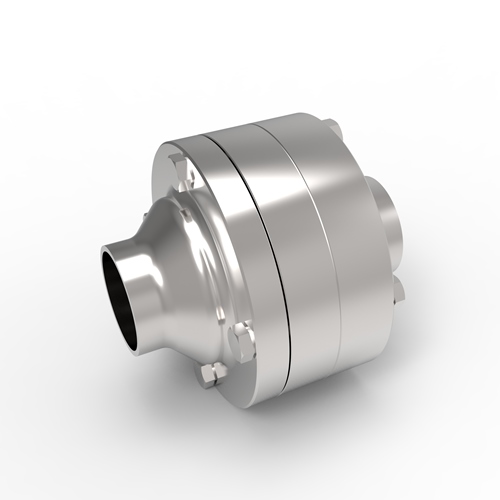

TO WELD DIN 11850 (DIN 11866 Reihe A) |
|
Temperature Range |
-40 ° C / + 150 ° C |
|
Operating pressure |
PN16 (standard). Other pressures on request |
|
Treated products |
Liquids |
|
Certificates (on request) |
MATERIALS: (EN10204-3.1) / PVDF ball O-Ring (FDA – USP VI) |
Full traceability for all metal components and gaskets
|
YGROS AGGRBALL: STANDARD OPENING PRESSURES
|
||
|
Installation |
Direction of flow |
Opening pressure |
|
HORIZONTAL |
30/50 mbar |
|
|
VERTICAL |
Descending Flow |
27/45 mbar |
|
VERTICAL |
Ascending Flow |
33/55 mbar |
|
Once the valve is open, a pressure of about 10 mbar will be enough to keep it running. |
||
Alternative opening pressures on request

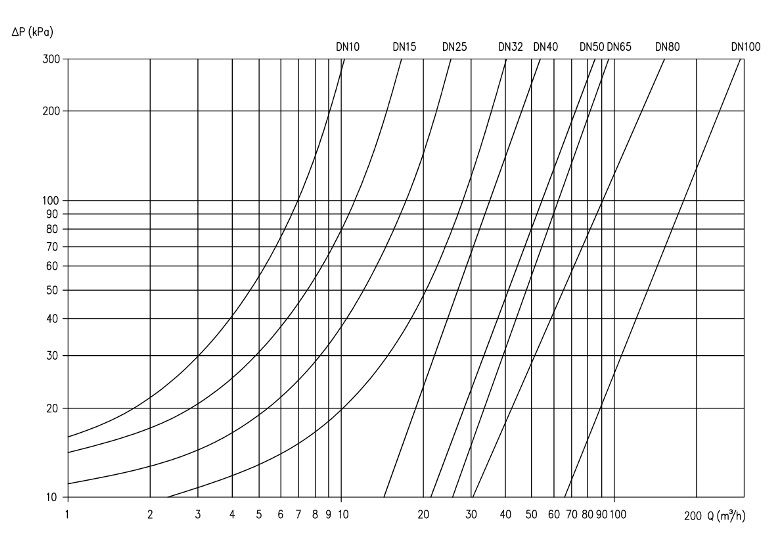

PRESSURE LOSS GRAPH
Test with water at 20 ° C (68 ° F) on horizontal pipes
