YEV VALVE
CHECK VALVE YEV
The simplest springless non-return valve for food and beverage systems
Maximum hygiene without any need for maintenance. Guaranteed tightness in all mounting positions (even vertically with downward flow).
The technology patented by YGROS sets new standards in the world of plant engineering, thanks to a magnetic principle that replaces the function of the spring. For the food and beverage industry. Resistant up to 150 ° C.
The YEV valve is the simplest model of the entire Ygros range, but it does not lose its characteristics of hygiene and reliability.
- No more springs that can break or jam.
- No intermediate components to prevent flow
- No stagnation points.
- No maintenance required.
- Minimum order
BENEFITS
- Energy saving Operating principle and innovative design allow a smooth and free passage, thus minimizing turbulence and pressure drops
- Maximum hygiene Only the shutter comes into contact with the product. No stagnation points, no springs or other intermediate components that could contaminate it
- Closing and sealing guarantee Secured by the patented magnetic principle
- Free positioning Ygros YEV maintains its functionality both on horizontal and vertical installations
- Laminar Flow Minimizes turbulence
- It does not require maintenance
- Long valve life thanks to the high chemical resistance of the construction materials used
TECHNICAL DATA
|
Materials in contact with the product |
Body and flanges: Stainless steel
1.4404 (AISI 316L)
|
|
Gaskets |
EPDM, VMQ (Silicone), FKM (Viton) |
|
Surface finishes |
Internal: Ra µm ≤ 0.8
|
|
Flanges available |
TO WELD: DIN 11850 / ASME BPE
|
|
Temperature Range |
-40 ° C / + 150 ° C |
|
Operating pressure |
PN16 |
|
Treated products |
Food & Beverage / Liquids |
|
Certificates (on request) |
MATERIALS: EN10204-3.1 / O-Ring
(FDA) / Surface roughness
|
Full traceability for all metal components and gaskets
|
YGROS YEV: STANDARD OPENING PRESSURES
|
||
|
Installation |
Direction of flow |
Opening pressure |
|
HORIZONTAL |
30/50 mbar |
|
|
VERTICAL |
Descending Flow |
27/45 mbar |
|
VERTICAL |
Ascending Flow |
33/55 mbar |
|
Once the valve is open, a pressure of about 10 mbar will be enough to keep it running. |
||

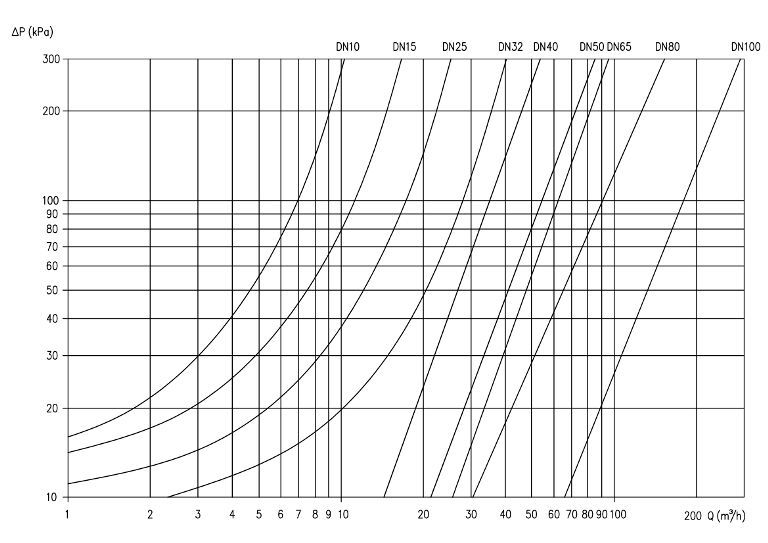

PRESSURE LOSS GRAPH
Test with water at 20 ° C (68 ° F) on horizontal pipes
